SCREWDRIVERS


MULTIPLE TORQUE CONTROLLED with SINGLE DRIVER

Multiple Torque Control

The multiple torque system is designed to expand the functionality of the PLUTO screwdriver and EDU1AE controller by enabling easy access to multiple torque settings with one EDU1AE controller and one Pluto driver only.

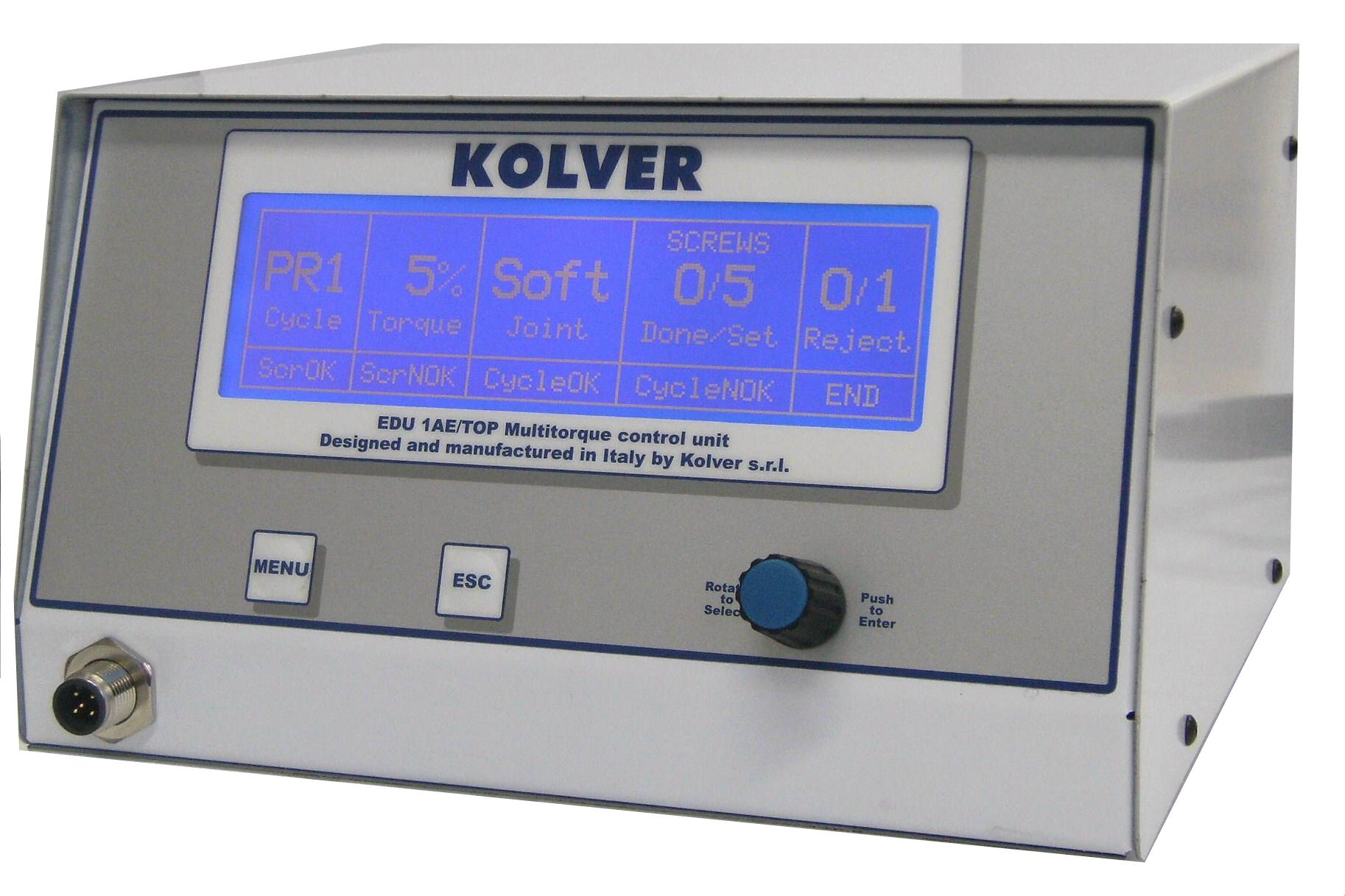

Models include a double torque output unit and a multiple torque unit EDU1AE/TOP. It features up to 8 programs each one with different torque values, speed, ramp, screw counting, batch counting, USB port for printer and PC connection, torque chart with real time clock.
8 independent programs: with one PLUTO screwdriver you can replace 8 conventional screwdrivers.
Each program can accept the following settings: Torque, Speed, Type of Joint, Number of Screws to be tightened, Number of Rejects allowed, Minimum screwing time, Maximum screwing time, Ramp time, Auto reverse, Auto switch to the next program with any sequence, Allow or Prevent reverse option: you can find the correct setting for any applications, never miss a screw in your assembly.
Password protected: no tampering from anybody.
Statistics menu with summary of work done: at the end of the day you'll know how many cycles have been performed correctly, how many wrongly, total number of screws etc.
15 input and 11 output connectors: you can control all functions from PLC.
Options include USB port, Socket tray or Switch box: maximum flexibility.
Giant 135 x 40mm blue display: easy to read from any angle.
Easy programming through user friendly menu.
Price 3 times lower than any similar product in the market.
